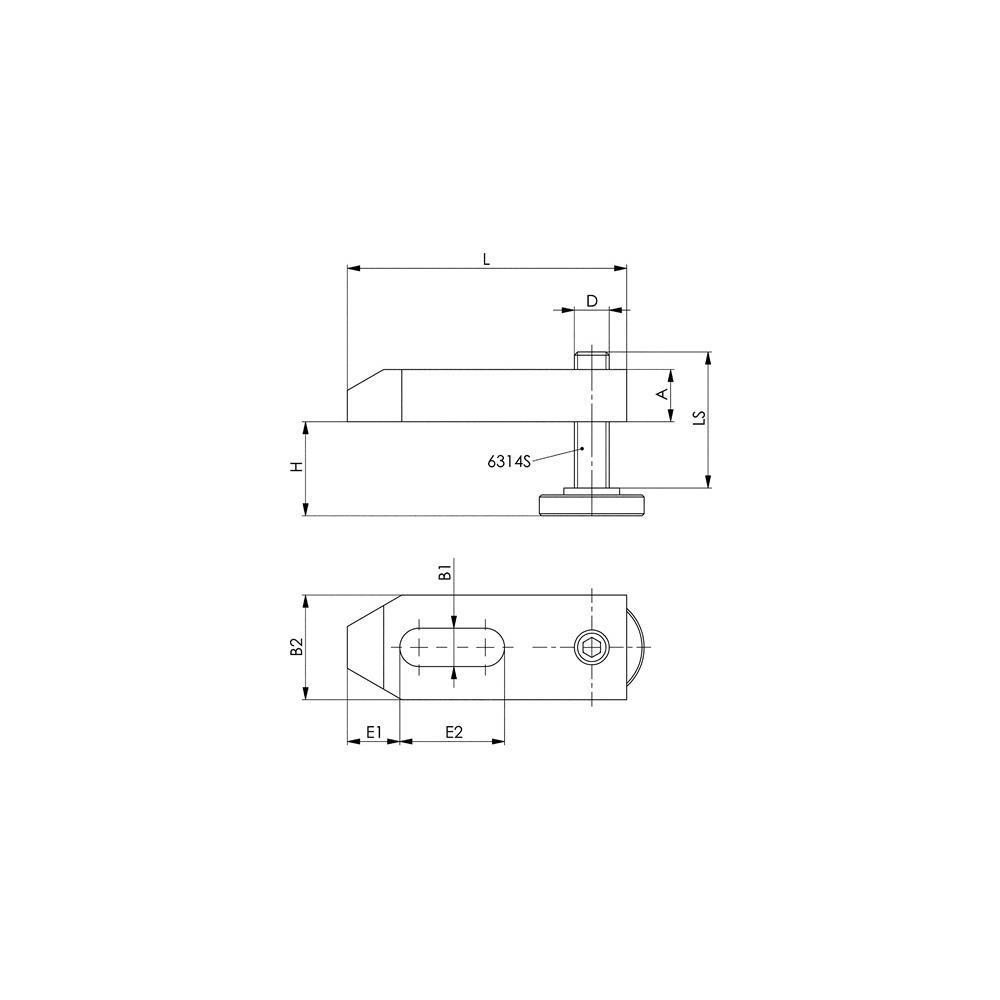

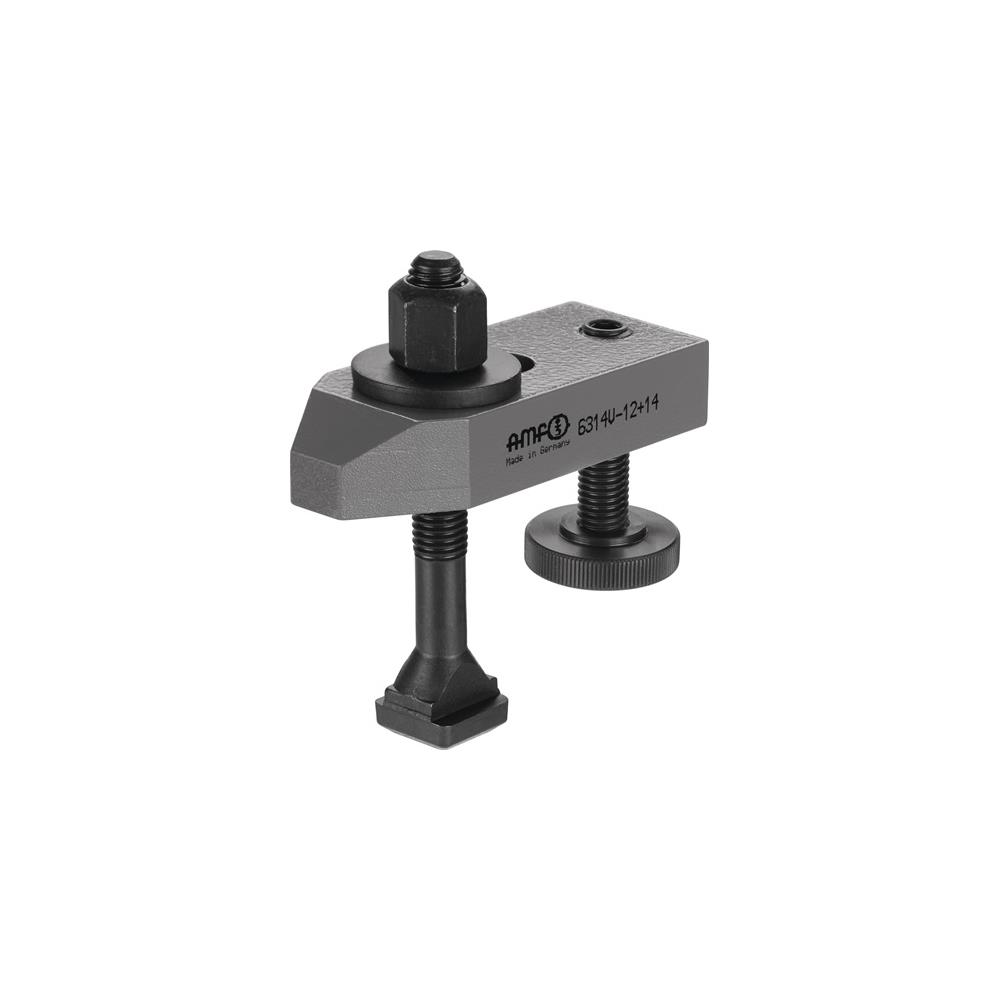

Produkteigenschaften: abgeschrägt mit verstellbarer Stütz- und Spannschraube Vergütungsstahl lackiert Technische Daten: für T-Nut: 16 mm Spannschraube: M16 x 16 x 125 mm Spannhöhe: 13 - 48 mm Marke: AMF Modell: Nr. 6314V Bauform: abgeschrägt Schlitzlänge: 45 mm Breite: 50 mm Länge: 125 mm A: 25mm B1: 18mm B2: 50mm E2: 45mm D: M16 E1: 26mm Gewicht: 1400g L: 125mm Stärke: 25 mm LS: 55mm Schlitzbreite: 18 mm H: 13 - 48mm Hinweis: Maß h = abhängig von Nutentiefe nach DIN 650, sowie Einschraublänge der Mutter. Spanneisen ohne Spannschraube sind in den Größen 12 und 14, 16 und 18 sowie 20 und 22 mm je eine Größe.Lieferumfang: 1x Amf Spanneisen Nr. 6314V für T-Nut 16 mm Spannhöhe 13 - 48 mm Spannschraube M16 x 16 x 125 mm
Hersteller Andreas Maier GmbH & Co. KG Schloss- u. Werkzeugfabrik
Waiblinger Str. 116,
70734 Fellbach,
Deutschland 0711/57660 Amf Spanneisen Nr. 6314V für T-Nut 16 mm Spannhöhe 13 - 48 mm Spannschraube M16 x 16 x 125 mm Artikel-Nr.: 70292 EAN: 4020772070298 Hersteller: MAIER GMBH
