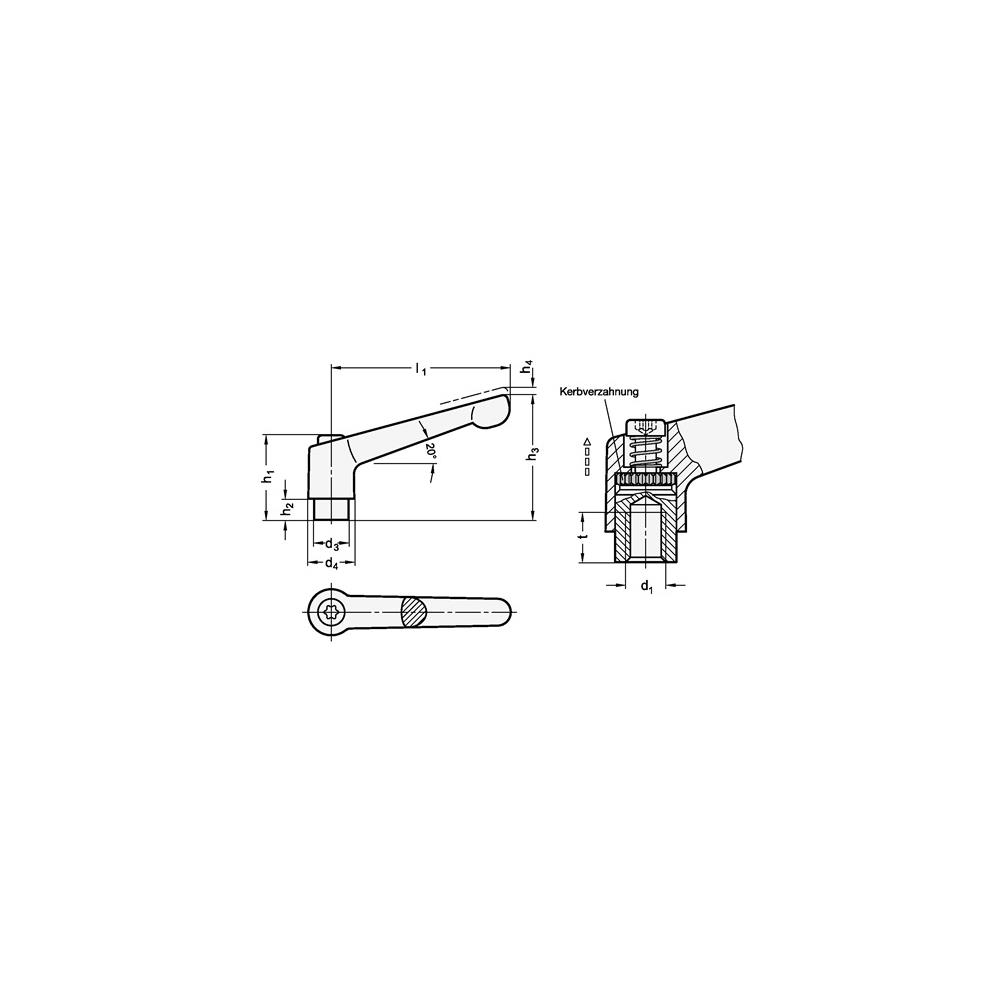

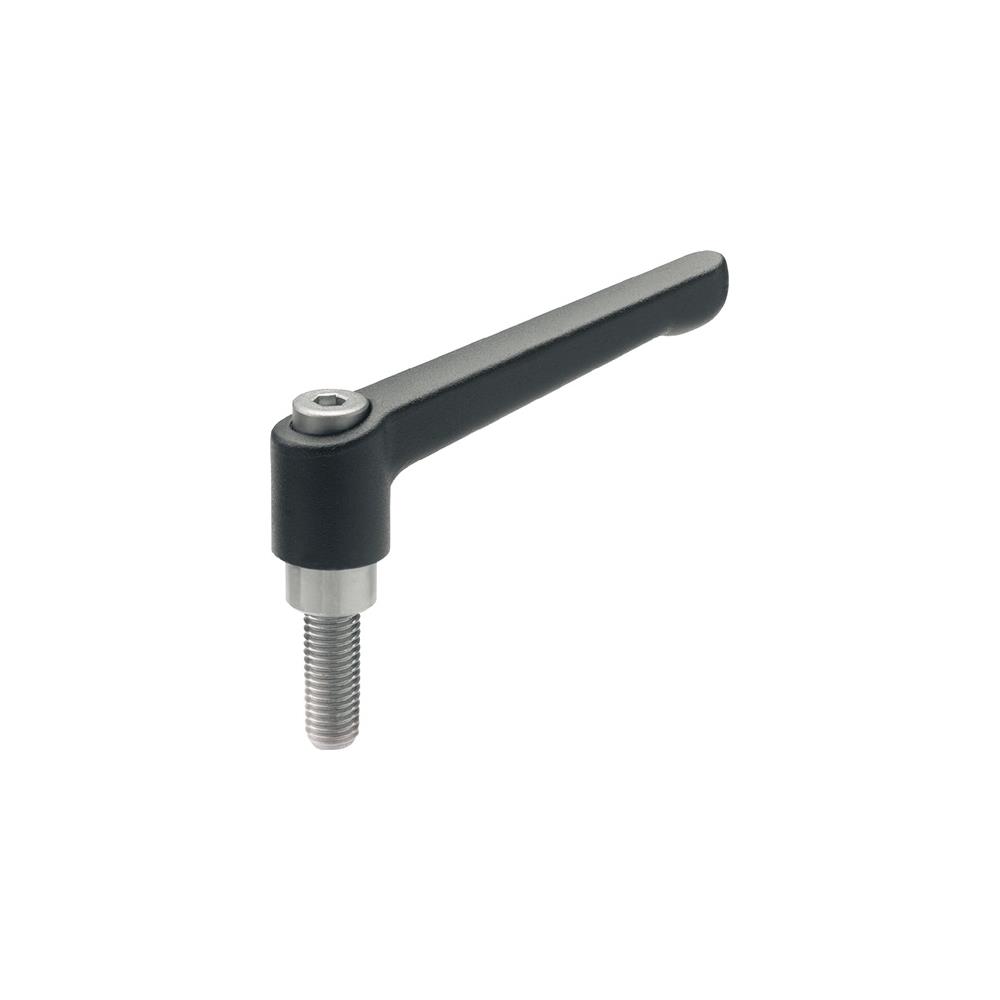

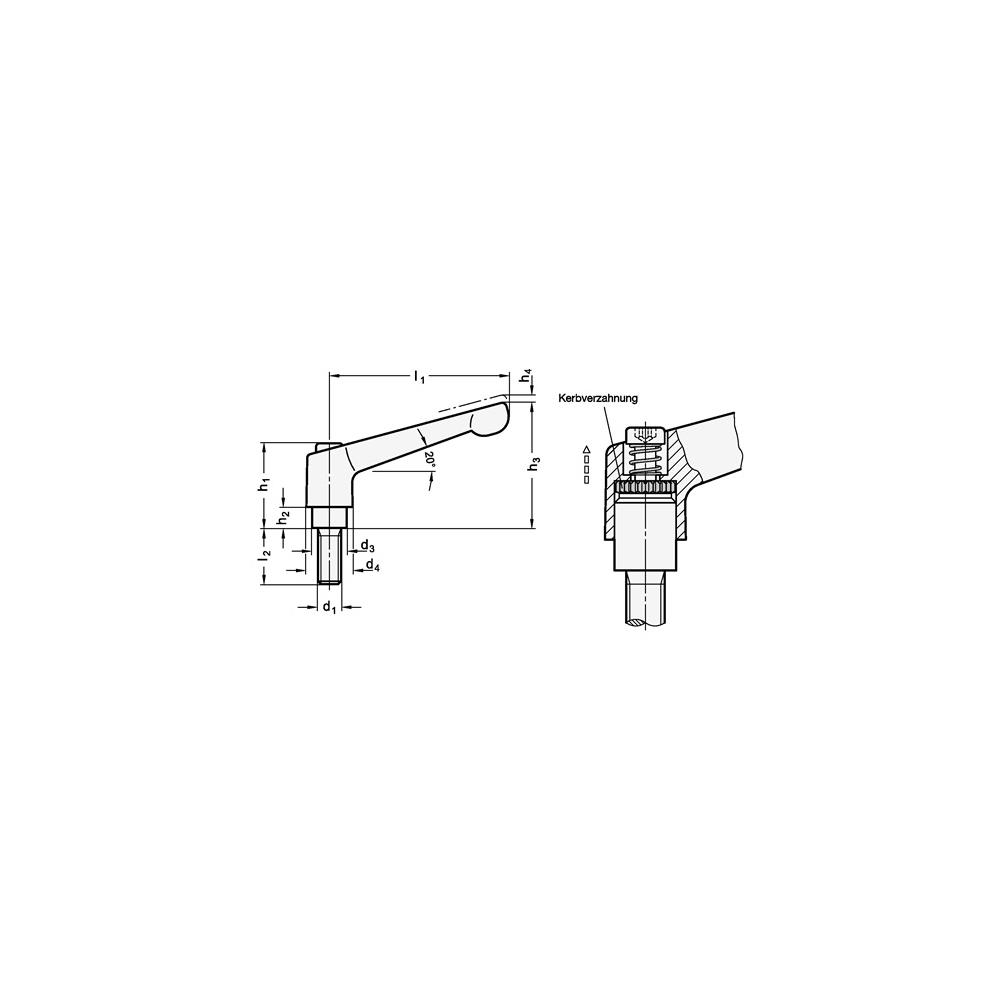

Produkteigenschaften: verstellbare Klemmhebel GN 300.1 sind vorzugsweise dann einzusetzen, wenn der Spannbereich begrenzt oder eine bestimmte Spannstellung erwünscht ist der Gewindeeinsatz ist durch eine Kerbverzahnung mit dem Griff lösbar verbunden durch Anheben (Ziehen) des Griffes wird die Kerbverzahnung frei und der Klemmhebel kann in die günstigste Spannposition geschwenkt werden beim ,,Loslassen rastet der Griff selbsttätig wieder ein Griffkörper Zink-Druckguss Gewindebuchse und Halteschraube : Edelstahl nichtrostend, 1.4305 Technische Daten: Ausführung: Außengewinde t min.: - mm Marke: GANTER d4: 30mm h2: 12mm h4: 5mm l2: 32mm l1: 108mm h1: 50,5mm d1: M 16mm d3: 23mm h3: 75mm weitere Abmessungen und Farbvarianten auf Anfrage lieferbarLieferumfang: 1x Ganter Verstellbarer Klemmhebel GN 300.1 d1 M 16 mm l1 108 mm l2 32 mm Außengewinde
Hersteller Otto Ganter GmbH & Co. KG Normteilefabrik
Triberger Straße 3,
78120 Furtwangen,
Deutschland 07723/65070 Ganter Verstellbarer Klemmhebel GN 300.1 d1 M 16 mm l1 108 mm l2 32 mm Außengewinde Artikel-Nr.: 300.1-108-M16-32-SW EAN: 4045525158412 Hersteller: GANTER
